Adjustable DC-DC Boost Converter Power Supply with TL494 PWM IC

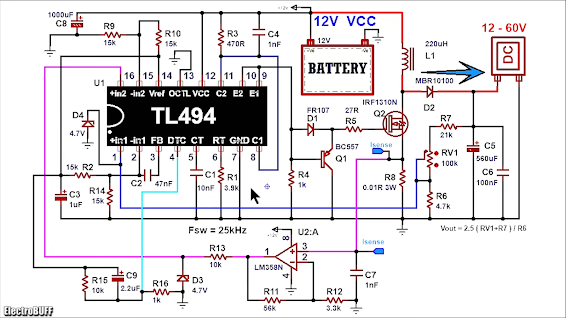

Complete Circuit Diagram

TL494 Adjustable Voltage DC DC boost converter switch mode power supply

How a DC to DC Boost Converter Works, Step-Up Voltage Booster Circuit Explained

Basic Circuit:

DC to DC Boost Converter Step Up Voltage Booster Circuit

Boost Converter Overview:

A DC-to-DC boost converter is a type of power electronic circuit used to step up or increase the voltage of a DC power source. It's commonly employed in various applications, such as battery-powered devices, renewable energy systems, and electronic gadgets, where a higher voltage is needed than the input source provides.

Here's a basic explanation of how a DC-to-DC boost converter works:

Input Stage:

The boost converter begins with an input stage, where a DC voltage is applied. This input voltage is typically lower than the desired output voltage.

DC to DC Boost Converter Step Up Voltage Booster Circuit

Switching Stage:

The heart of the boost converter is a switch, often a transistor (such as a MOSFET). The switch rapidly turns on and off at a high frequency. This process is known as pulse-width modulation (PWM). When the switch is on, current flows through an inductor and the load. When the switch is off, the inductor releases energy to the load.

DC to DC Boost Converter Step Up Voltage Booster Circuit

Inductor:

The inductor is a crucial component in a boost converter. When the switch is on, the inductor stores energy as magnetic flux. The current through the inductor increases. When the switch is off, the magnetic field collapses, and the inductor releases stored energy in the form of a voltage boost.

DC to DC Boost Converter Step Up Voltage Booster Circuit

DC to DC Boost Converter Step Up Voltage Booster Circuit

Diode:

A diode is connected in parallel with the load. It allows current to flow in only one direction. During the off state of the switch, the diode conducts, providing a path for the energy stored in the inductor to reach the output.

DC to DC Boost Converter Step Up Voltage Booster Circuit

Output Stage:

The boosted voltage is delivered to the load. The duty cycle of the switch (the ratio of time the switch is on to the total switching period) determines the output voltage.

DC to DC Boost Converter Step Up Voltage Booster Circuit

In summary, the boost converter works by using the switch, inductor, and diode to cyclically store and release energy. The rapid switching allows the conversion of a lower input voltage to a higher output voltage. The efficiency of the boost converter is influenced by factors such as the switching frequency, inductor quality, and the characteristics of the components used.

Watch YouTube Video Tutorial

https://youtu.be/Nz7wEYzCSfQ?si=uknwKA2wOWcOCDZd

TL494 IC Basics, How it works?

The TL494 is a widely used pulse-width modulation (PWM) controller integrated circuit (IC) that is commonly employed in power supply and motor control applications. Developed by Texas Instruments, the TL494 offers versatile features and capabilities, making it a popular choice for various electronic designs. Here's an overview of its basics, pinout, functions, PWM implementation, applications, and pros and cons:

Basics:

Pinout:

The TL494 typically comes in a 16-pin dual-in-line (DIP) package. Here's a brief overview of its pinout:

TL494 IC Pinout and internal Block diagram

• Pin 1: Error Amplifier Output (EAout)
• Pin 2: Inverting Input of Error Amplifier (EA-)
• Pin 3: Non-Inverting Input of Error Amplifier (EA+)
• Pin 4: Ground (GND)
• Pin 5: Voltage Feedback Input (FB)
• Pin 6: Output Collector (COL)
• Pin 7: Vref (Reference Voltage)
• Pin 8: Output Emitter (EMI)
• Pin 9: Dead Time Control (DT)
• Pin 10: Discharge (DIS)
• Pin 11: Soft Start (SS)
• Pin 12: Oscillator Timing Capacitor (CT)
• Pin 13: Oscillator Timing Resistor (RT)
• Pin 14: VCC (Positive Supply Voltage)
• Pin 15: Output Base (BO)
• Pin 16: Output Emitter (EO)

Functions:

• Error Amplifier: Compares the reference voltage (Vref) with a fraction of the output voltage to generate an error signal.
• Voltage Feedback (FB): Used for feedback from the output voltage to the error amplifier.
• Oscillator: Generates a triangular waveform used for PWM signal generation.
• Dead Time Control (DT): Provides control over dead time to prevent shoot-through in push-pull configurations.
• Soft Start (SS): Gradually ramps up the PWM to reduce inrush currents during startup.

PWM Implementation:

The TL494 generates a PWM signal by comparing the error signal from the error amplifier with a sawtooth waveform generated by the internal oscillator. The resulting PWM signal is then used to drive a power stage, such as a power MOSFET or bipolar junction transistor (BJT), in a switching power supply.

Applications:

1. Switching Power Supplies: The TL494 is commonly used in the design of switch-mode power supplies for various applications, including industrial, automotive, and consumer electronics.

2. Motor Control: It can be utilized in motor control circuits to regulate the speed and direction of motors in appliances and industrial systems.

3. Inverters: The TL494 finds applications in the design of inverters used in uninterruptible power supplies (UPS) and solar inverters.

4. Battery Chargers: It can be employed in the design of battery charging circuits with PWM control for efficient and controlled charging.

5. Audio Amplifiers: In some cases, the TL494 is used in Class D audio amplifiers due to its PWM capabilities.

Pros and Cons:

Pros:

• Versatile and widely available.
• Can be configured for various power supply topologies.
• Provides good control over PWM parameters.
• Suitable for a range of applications.

Cons:

• Limited maximum switching frequency compared to some dedicated PWM controllers.
•

• May require external components for specific applications.
•

• Newer, more advanced PWM controllers may offer additional features.

In conclusion, the TL494 is a robust and versatile PWM controller with a broad range of applications in power electronics. Its flexibility, reliability, and ease of use make it a popular choice for engineers designing power supplies and motor control systems.
