IR2153 5000Watts! Power Inverter

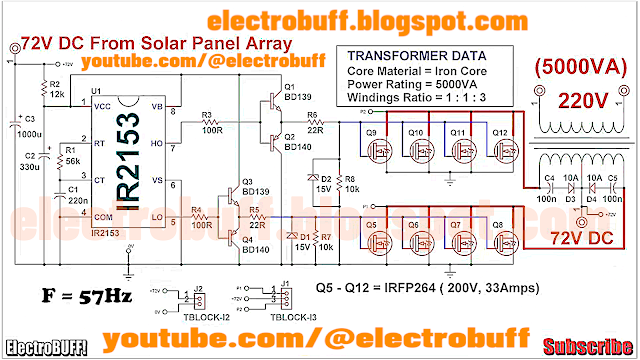

IR2153 5kW Inverter Circuit Diagram

IR2153 half bridge driver IC Inverter Circuit for 5000W solar panel array electrobuff.blogspot.com

Hello guys? Today I'm going to show you how to make a massive 5000Watts power Inverter for a solar panel (battery) array. It takes 72V DC input and converts this into 220V AC for use in domestic AC appliances. Of course you can make minor modifications in the transformer and circuit to allow for much lower input voltages such as 36V DC or even higher voltages depending on the system you have.
I hope you enjoy my content, and if so then make sure to LIKE this video, SHARE with your friends on Social media and SUBSCRIBE to my channel for more amazing electronics videos.

Watch my YouTube Video Tutorial

https://youtu.be/4nAQGTPSs0A?si=OP3XUrWZIs5DvBgX

IR2153 Inverter Explained:

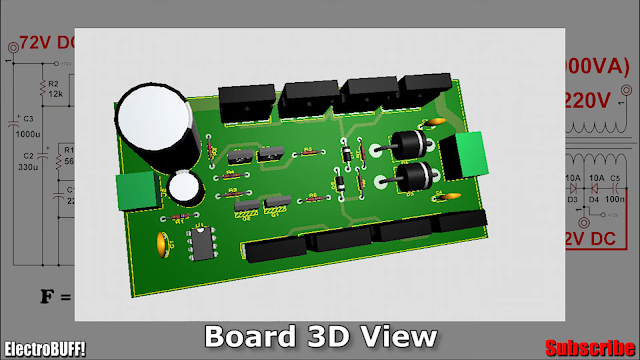

IR2153 half bridge driver IC Inverter Circuit for 5000W solar panel array pcb electrobuff.blogspot.com

IR2153 half bridge driver IC Inverter Circuit for 5000W solar panel array electrobuff.blogspot.com

IR2153 half bridge driver IC pinout and frequency electrobuff.blogspot.com

IR2153 half bridge driver IC inverter frequency electrobuff.blogspot.com

IR2153 half bridge driver IC Inverter Circuit for 5000W solar panel array electrobuff.blogspot.com

IR2153 half bridge driver IC Inverter Iron Cored Transformer for 5000W solar panel array electrobuff.blogspot.com

IR2153 half bridge driver IC Inverter PCB Circuit for 5000W solar panel array electrobuff.blogspot.com

IR2153 Self-Oscillating Half-Bridge MOSFET Driver IC Explained

IR2153 IC Pinout DIP electrobuff.blogspot.com

IR2153 IC DIP electrobuff.blogspot.com

IR2153 Half-Bridge MOSFET Driver

IR2153 Pinout

The IR2153D is an improved version of the popular IR2155 and IR2151 gate driver ICs, and incorporates a high voltage half-bridge gate driver with a front-end oscillator similar to the industry standard CMOS 555 timer.

IR2153D Pinout Configuration

Pin Number	Pin Name	Description
1	VCC	Logic and internal gate drive supply voltage
2	RT	Oscillator timing resistor input
3	CT	Oscillator timing capacitor input
4	COM	IC power and signal ground
5	LO	Low side gate driver output
6	VS	High voltage floating supply return
7	HO	High side gate driver output
8	VB	High side gate driver floating supply

IR2153 IC Features & Specifications

Integrated 600V half-bridge gate driver
15.6V Zener clamp on Vcc
True micropower start up
Tighter initial deadtime control
Low temperature coefficient deadtime
Shutdown feature (1/6th Vcc) on CT pin
Increased undervoltage lockout Hysteresis (1V)
Lower power level-shifting circuit
Constant LO, HO pulse widths at start-up
Lower di/dt gate driver for better noise immunity
Low side output in phase with RT
Internal 50nsec (typ.) bootstrap diode (IR2153D)
Excellent latch immunity on all inputs and outputs
ESD protection on all leads
Also available LEAD-FREE

IR2153 Equivalent ICs

IR44272, IR44273, IR44252, IR2100, IR2122

Where to use IR2153 MOSFET Gate Driver

The IR2153 is an improved version of the popular IR2155 and IR2151 gate driver ICs. The IR2153 provides more functionality and is easier to use than previous ICs. A shutdown feature has been designed into the CT pin, so that both gate driver outputs can be disabled using a low voltage control signal. In addition, the gate driver output pulse widths are the same once the rising undervoltage lockout threshold on VCC has been reached, resulting in a more stable profile of frequency vs time at start-up. Noise immunity has been improved significantly, both by lowering the peak di/dt of the gate drivers, and by increasing the undervoltage lockout hysteresis to 1V. Finally, special attention has been paid to maximizing the latch immunity of the device, and providing comprehensive ESD protection on all pins.

As this IC is a half-bridge gate driver IC that can be used in many different applications like DC-DC power supplies, Inverters, motor driver, solenoid river, high side MOSFET drivers can be used for protection relay power distribution and motor driver applications.

IR2153 Half Bridge Controller IC Internal Block Diagram electrobuff.blogspot.com

Basic Features and Maximum Rating of IR2153 IC

This IC has some interesting features that one must know in order to work with this IC. The high side floating supply voltage is 25V maximum, the high side floating supply offset voltage is 3V, the RT and CT pin is VCC + 0.3 Volts respectively, and the applied current for this IC is 25mA. The slew rate for this IC is 50V/nS. The maximum power dissipation for this IC is 1W. Maximum junction temperature is 150 °C.

IR2153 Half Bridge Controller IC Frequency Response Calculation electrobuff.blogspot.com

The above figure shows you the frequency response when using different RT and CT values, in this device

How to use IR2153 MOSFET Gate Driver

As the name suggest this IC is mostly used to drive the gate of the MOSFET. A MOSFET gate driver is required when there is a need to switch a MOSFET with extreme efficiency. The image below shows a basic schematic of the configuration of the IR2153

IR2153 Half Bridge Controller IC Sample Circuit electrobuff.blogspot.com

Applications

Industrial controls
Automatic Test Equipment (ATE)
HVAC controls
Medical devices
Internet of Things

2D Model and Dimensions

If you are designing a PCB or Perf board with this component then the following picture from the Datasheet will be useful to know its package type and dimensions.
