SG3525 Powerful 1500Watts! Inverter Circuit 12V to 220V DC to AC
1500Watt Power Inverter Circuit 12V to 220V DC to AC

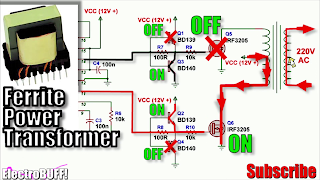

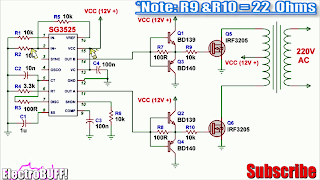

Complete Circuit Diagram:
sg3525 inverter circuit diagram 1500watts! electrobuff.blogspot.com |
Overview:
Hello guys. In today's tutorial, I'll be showing you a simple circuit for a Power Inverter using the popular SG3525 PWM IC regulator and a couple of other components. The inverter circuit works flawlessly and very reliably. The output power can be quite high, depending on the number of power MOSFETs that you choose to use and parallel, as well as the size of ferrite power transformer that you use.
Watch my YouTube Video Tutorial:
