TL494 Adjustable Switching Power Supply (Universal buck boost Converter)...
TL494 Adjustable Universal Power Supply, Buck Boost DC DC Converter, SMPS

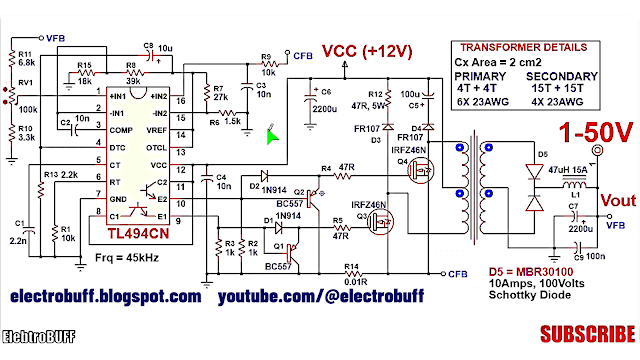

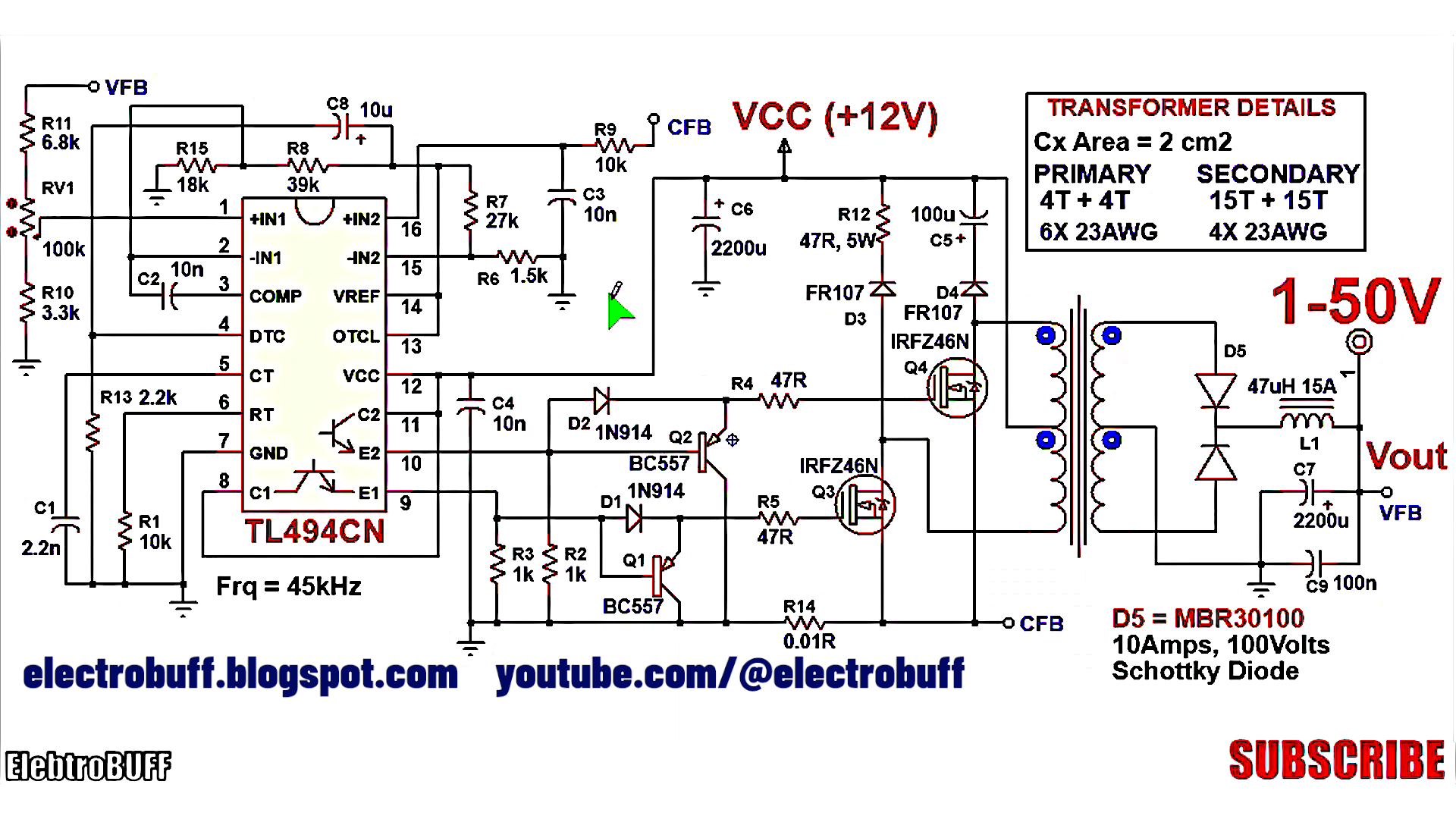

Complete Circuit Diagram:%201-50V%20(1).png) |
| TL494 universal buck boost smps circuit (switching mode power supply) |
Hi. Today I'll show you how to make an Adjustable Switching Mode Power Supply with both a Buck (step-down) and Boost (Step-up) capability. It takes an input of 10-15V and can deliver an adjustable output voltage from 2-50V DC at a maximum wattage of about 300 Watts. It's built around the TL494 PWM IC and has over current and short circuit protection by means of current limiting.
Watch my Youtube Video TutorialHow the Power Supply Works
%201-50V%20(2).png)
%201-50V%20(3).png)
%201-50V%20(4).png)
%201-50V%20(5).png)
%201-50V%20(6).png)
%201-50V%20(7).png)
%201-50V%20(8).png)
%201-50V%20(9).png)
%201-50V%20(10).png)
%201-50V%20(11).png)
%201-50V%20(12).png)
%201-50V%20(13).png)
%201-50V%20(14).png)
%201-50V%20(15).png)
%201-50V%20(16).png)
.png)
.png)
.png)
