UC3843 Switching Power Supply for High Voltage Experiments (DC DC Flybac...
High Voltage DC SMPS (Switching Mode Power Supply) with UC3843 PWM IC, Power Inverter Alternative!
Complete Circuit Diagram
%20circuit.png) |
| UC3843 High Voltage SMPS for diy experiments, flyback dc dc converter |
Watch my YouTube Video Tutorial
Component Parts List
%20parts%20list%20BOM.png) |
| UC3843 Switching Power Supply for High Voltage Experiments (DC DC Flyback SMPS) parts list BOM |
How the Circuit Works
%200-39%20screenshot.png) |
| uc3843 pwm ic features and applications |
%200-59%20screenshot.png) |
| uc3843 pwm ic pinout |
%201-7%20screenshot.png) |
| uc3843 pwm ic pinout description functions |
%202-7%20screenshot.png) |
| uc3843 frequency formula calculations |
%203-2%20screenshot.png) |
| uc3843 flyback smps |
%203-36%20screenshot.png) |
| uc3843 flyback smps switching stage 1 |
%204-14%20screenshot.png) |

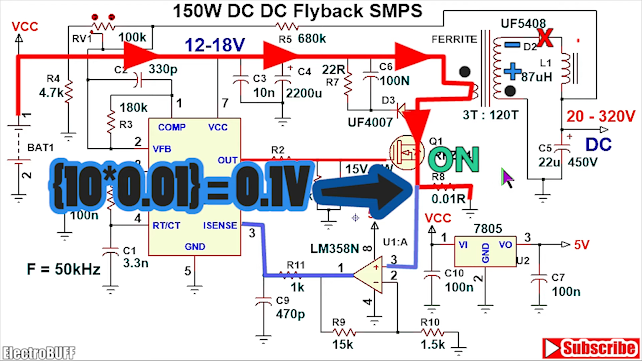

| flyback smps overcurrent feedback protection |
%204-32%20screenshot.png) |
| flyback smps overcurrent feedback protection |
%205-5%20screenshot.png) |
| uc3843 flyback smps swithing stage 2 |
%208-28%20screenshot.png) |
| ferrite power transformer selection guide |
%208-55%20screenshot.png) |
| ferrite power transformer power output calculation estimate |
%209-7%20screenshot.png) |
| ferrite power transformer selections table smps inverter |
%209-25%20screenshot.png) |
| inverter smps power mosfet choice selection guide |
