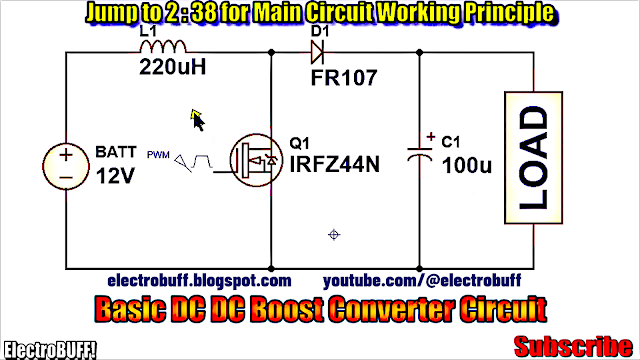

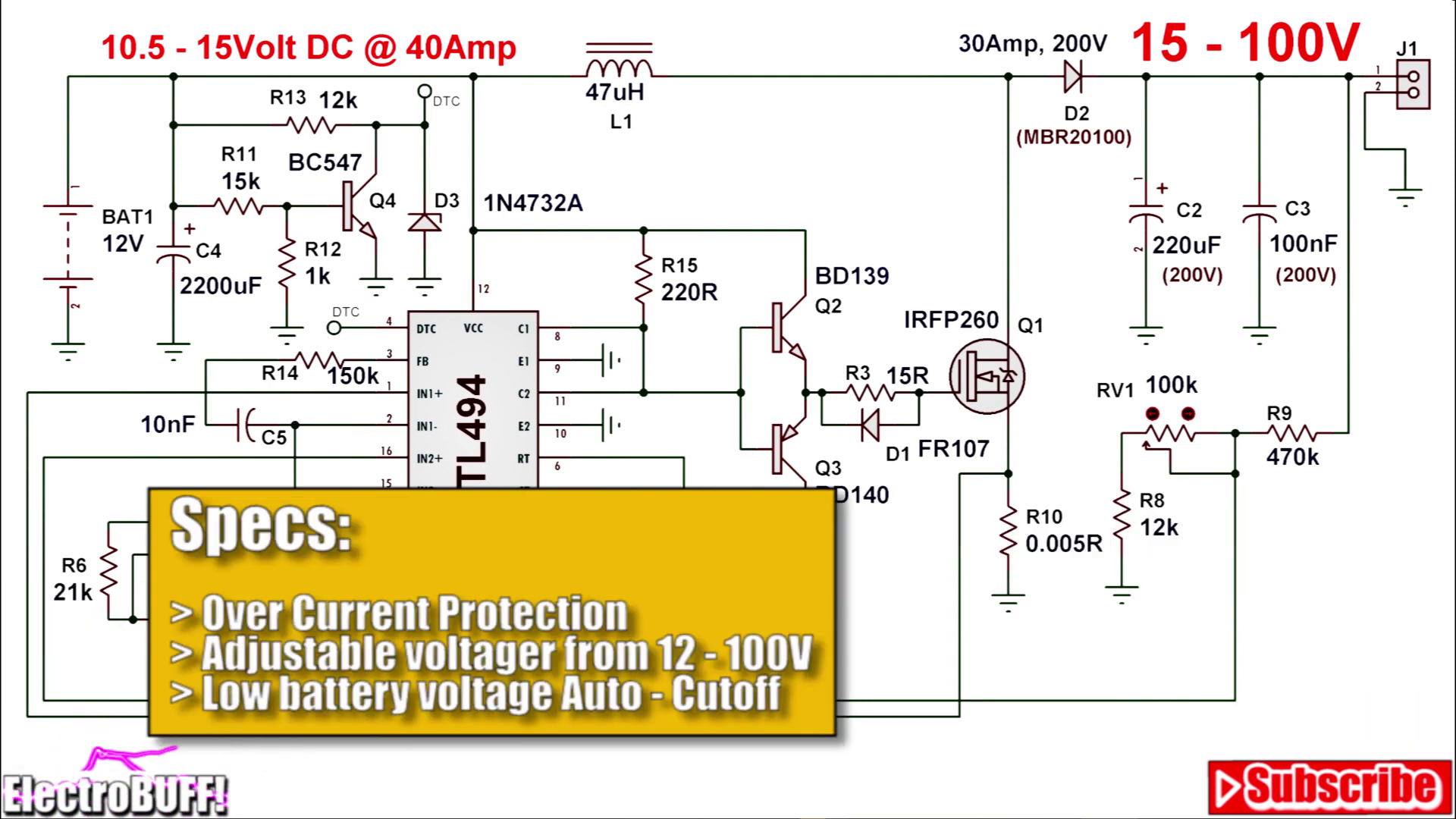

Basic DC to DC Boost Converter Circuit _ Step Up Voltage Booster
A DC to DC boost converter is an electronic circuit that increases the voltage of a DC power source to a higher level. It operates by periodically storing energy in an inductor and then transferring that energy to the output circuit using a diode. The output voltage is higher than the input voltage, and the control circuit ensures that the output voltage is regulated within the desired range. Boost converters are commonly used in applications where a higher output voltage is required, such as in battery-powered devices or renewable energy systems.

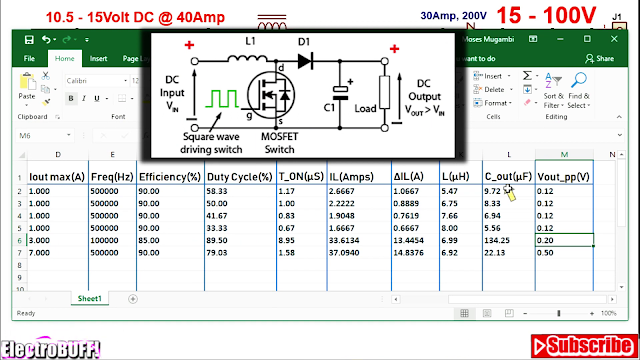

Here's a brief explanation of how a typical boost converter works:
Input Stage: The boost converter starts with a DC input voltage, often lower than the desired output voltage. This input voltage is connected to the circuit.
Switching Transistor: The core component of the boost converter is a switching transistor (usually a MOSFET). This transistor alternately connects and disconnects the input voltage to an inductor in a controlled manner.
Inductor (Energy Storage Element): When the transistor is closed, current flows through the inductor, storing energy in its magnetic field. When the transistor is opened, the magnetic field collapses, inducing a voltage across the inductor in the opposite direction.
Diode (Output Rectifier): A diode is connected in parallel with the load. When the transistor is open, the diode allows the energy stored in the inductor to flow to the output capacitor and load, raising the output voltage.
Output Capacitor (Energy Storage Element): The output capacitor smoothens the voltage across the load, reducing ripple and providing a stable output.
Control Circuit: A control circuit monitors the output voltage and adjusts the duty cycle of the switching transistor to regulate the output voltage. The control circuit compares the actual output voltage with a reference voltage and dynamically adjusts the switching frequency to maintain the desired output.
