TL494 High Current Gate Driver Transformer Driver For Inverters and Switch Mode Power Supplies

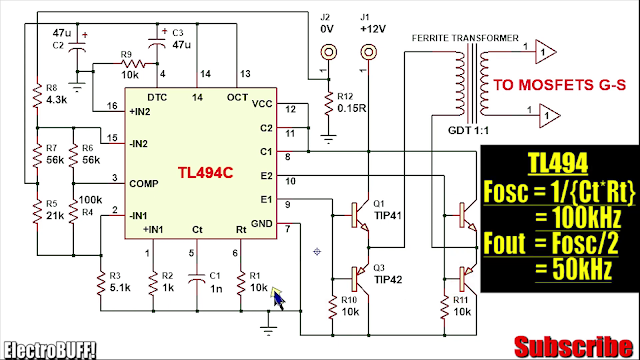

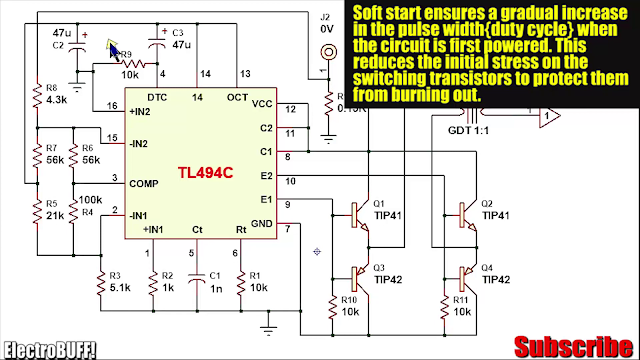

Complete Circuit Diagram:

TL494 High Current Gate Driver Transformer Driver Circuit For Inverters and Switch Mode Power Supplies

Gate Driver Overview:

Hello electronics fans. Today I'll show you a simple but very reliable way to make a Gate Drive Transformer Control Circuit with the TL494 PWM IC. The Circuit is very robust and can deliver a Gate Drive current of up to 6 Amperes. It's very suitable for use in many inverters and switch mode power supplies (SMPS).
A gate drive transformer circuit is a crucial component in power electronics, particularly in applications involving high-power switching devices such as insulated gate bipolar transistors (IGBTs) or metal-oxide-semiconductor field-effect transistors (MOSFETs). The primary purpose of a gate drive transformer is to provide isolated and controlled signals to the gate terminals of these power switches.
The circuit typically consists of a transformer, a driver circuit, and associated components. Here's a basic overview of how a gate drive transformer circuit works:
Isolation: One of the primary functions of the gate drive transformer is to provide electrical isolation between the high-voltage side (power circuit) and the low-voltage side (control circuit). This isolation is crucial for safety reasons and to prevent ground loop issues.

Transformer: The transformer in the circuit serves to step down the voltage from the primary side (high-voltage side) to the secondary side (low-voltage side). This ensures that the control circuit operates at a safe and manageable voltage level.

Driver Circuit: The driver circuit is responsible for generating the signals that drive the gates of the power switches. These signals are typically in the form of square waves with specific characteristics to ensure proper switching of the power devices. The driver circuit must be designed to handle the voltage and current requirements of the power switches.

Feedback and Control: Some gate drive transformer circuits incorporate feedback mechanisms to ensure accurate and precise control of the switching process. This feedback can come from sensors monitoring the current, voltage, or temperature in the power circuit, allowing the control circuit to dynamically adjust the gate drive signals.

Protection Circuits: Gate drive transformer circuits often include protection features to safeguard against overcurrent, overvoltage, or other fault conditions. These protections help prevent damage to the power switches and enhance the reliability of the overall system.

Application Specifics: The design of a gate drive transformer circuit can vary based on the specific application requirements, such as frequency of operation, power rating, and switching speed. Different applications, such as motor drives, power inverters, or uninterruptible power supplies, may have unique considerations that influence the design of the gate drive transformer circuit.

In summary, a gate drive transformer circuit plays a crucial role in power electronics by providing isolated and controlled signals to the gates of high-power switching devices. Its design must consider factors such as isolation, driver circuit characteristics, feedback control, and protection features to ensure the efficient and reliable operation of the overall power system.
