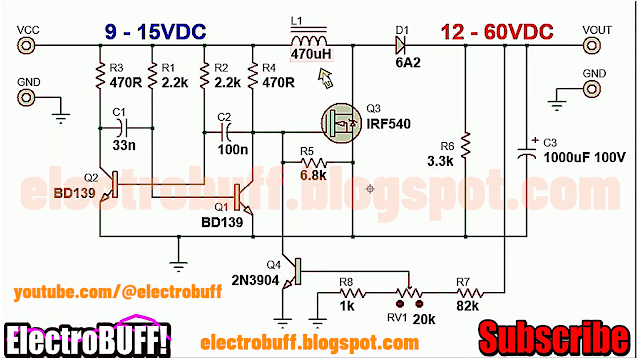

DC DC Converter Power Supply Complete Circuit Diagram
DC DC Boost Converter Power Supply Circuit electrobuff.blogspot.com
DC DC Converter Power Supply Circuit Overview
Hi, today am gonna show you a simple idea for a good DC-DC Boost converter without using any IC.
The power supply circuit is built around two circuits: a DC to DC Boost converter and an Astable Multivibrator Relaxation Oscillator using two BJTs. The oscillator controls the boost converter. A simple feedback network made up of a petentiometer and resistor divider network is employed to regulate the output voltage and maintain a stable voltage level regardless of the applied load at the output.
Electrobuff.blogspot.com is a Professional Educational Platform. Here we will only provide you with interesting content that you will enjoy very much. We are committed to providing you the best of Educational, with a focus on reliability and Electronics and electrical tutorials, hobby project ideas, interesting circuits and tech news. we strive to turn our passion for Educational into a thriving website. We hope you enjoy our Educational as much as we enjoy giving them to you.
I will keep on posting such valuable anf knowledgeable information on my Website for all of you. Your love and support matters a lot.
